ELBA 15min/8min
ELBA 15min/8min
The ELBA (Emergency Life Breathing Apparatus) is a compressed air emergency escape set designed for rapid evacuation from toxic or oxygen-deficient environments. Available in 8 or 15-minute durations, it features a "universal fit" hood design that ensures immediate respiratory protection without the need for complex adjustments. It is the ideal safety solution for personnel facing sudden outbreaks of hazardous fumes, smoke, or gases.
Salient Features
- Fire-retardant Fluorescent hood with inner mask available as option for ELBA 15 Mins only

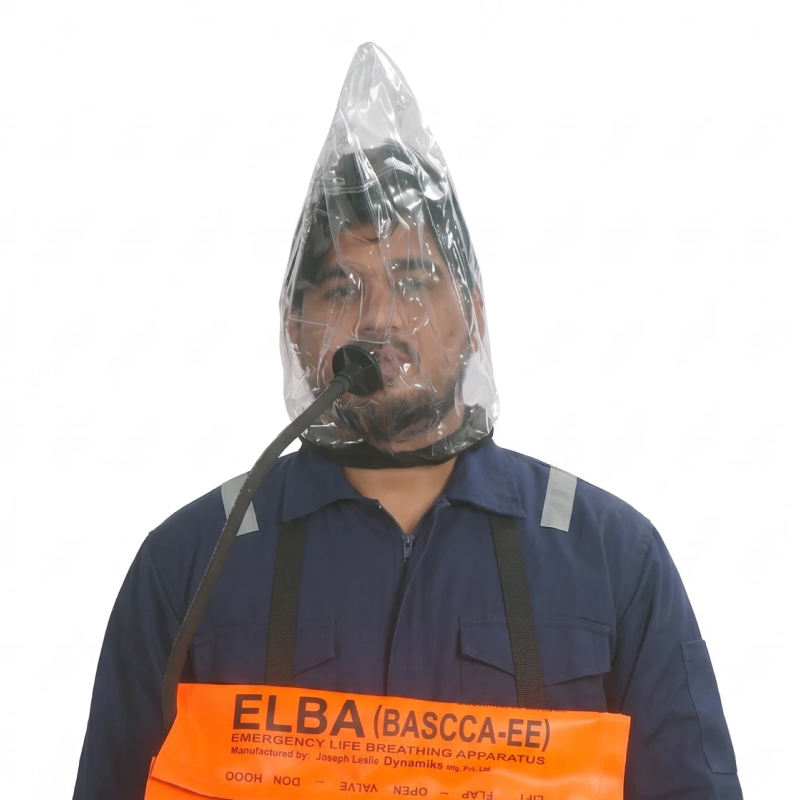

- Panoramic Vision Air Hood: Universal fit with panoramic visibility. Transparent PVC hood covers the entire head, providing a comfortable fit for all users.
- Simple & Rapid Operation
- Pneumatic Safety - Controlled Air Flow: Pressure reducing valve lowers pressure to approximately 5.5 bar for steady breathable air. Includes a constant monitoring pressure gauge on the reducing valve for continuous cylinder pressure indication.
- Fire-retardant Florescent hood with inner mask available as option
Approvals
- Cylinder and Valves approved to PESO Nagpur
- ELBA 8 Mins approved by DNBCD for use in the Indian Navy as BASCCA – EE
For More Details:
Enquire now
×
| Sr.No | Parameter | Specification |
|---|---|---|
| 1 | Duration Options | 8 Minutes, 15 Minutes |
| 2 | Cylinder Material | Alloy Steel (BS 5045) |
| 3 | Working Pressure | 200 Bar |
| 4 | Cylinder Volume | 1 Litre (8 min model) , 2 Litre (15 min model) |
| 5 | Reduced Pressure | Approx. 5.5 bar (80 psi) |
| 6 | Hood Material | PVC Transparent |
| 7 | Gauge Range | 0 - 270 Bar (40mm dial) |
| 8 | Maintenance | Operate every 6 months; Check gauge weekly |
Industrial Escape
Fire Emergencies
Oxygen Deficient Areas
Marine & Navy
