Fire Extinguisher Trainer (FET 1000)
Fire Extinguisher Trainer (FET 1000)

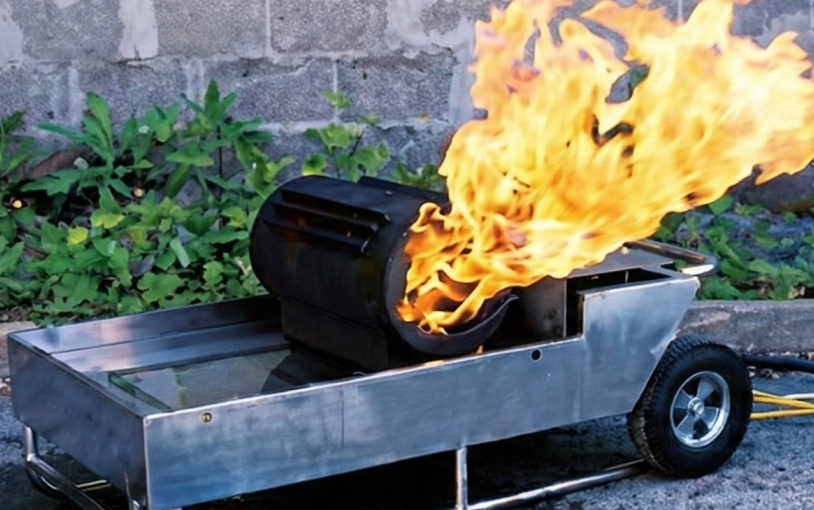

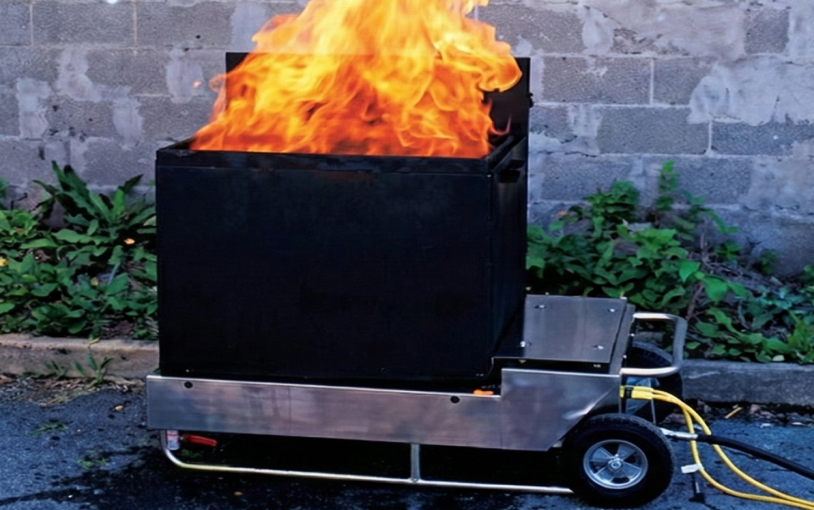

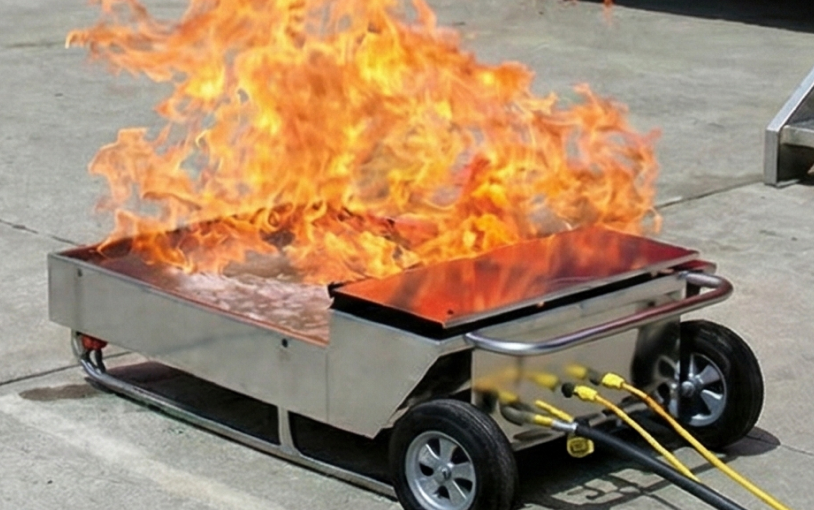

The FET 1000 Training Pan is the ideal tool for Fire Extinguisher Trainers to demonstrate how portable fire protection products are used in emergency situations. Designed by Joseph Leslie Dynamiks, this system provides a safe and environmentally friendly tool for resident training , allowing instructors to simulate fire scenarios that occur in daily life. This unit is specifically designed to educate staff in hospitals, warehouses, hotels, and public buildings on the proper use of extinguishers.
Key Features & Benefits
- High Performance: The unit generates up to 800,000 Btu/hr with a flame height of 30 to 50 inches, offering two stages of fire intensity.
- Durable Construction: Fabricated from 16 Gauge, polished SS 304 stainless steel with reinforced corners for longevity.
- Safety First: Features a “Dead Man” switch with a single control button on a 20 ft flame-proof cable, ensuring the instructor has immediate control.
- Mobility: Equipped with 10-inch rigid rubber wheels for easy transport.
- Easy Assembly: The burn pan features two mounting pins for easy assembly of smaller props, while larger props are custom-fit with no bolting necessary.
- Realistic Training: The training pan reacts realistically to the application of water.
- Certified Quality: Comes with Third-Party (UL) test certificates and includes a one-year warranty.
For More Details:
Enquire now
×
Fire Extinguisher Trainer (Model D-7100)
| Sr.No | Parameter | Specification |
|---|---|---|
| 1 | Dimensions | 28" W x 47" L x 16" H |
| 2 | Weight | 55 +/- 5 Kgs |
| 3 | Flame Area | 6.2 Sq. ft |
| 4 | Pilot System | Constant Pilot System |
| 5 | Hoses & Cables | Includes 20 ft. flame-proof gas hose and electrical cable |
| 6 | Power Source | Standard 12 V, 4.5Ah, rechargeable battery |
LPG Supply Trolley
| Sr.No | Parameter | Specification |
|---|---|---|
| 1 | Dimensions | 30" W x 15" L x 40" H |
| 2 | Weight | 30 Kg (without tank) |
| 3 | Fabrication | 16 Gauge, Polished SS304 Stainless Steel |
